Brand

JEC

JEC was established in 1990 and is based in Seoul, South Korea. The company manufactures high quality sanitary pumps and blenders that are precision engineered using computer controlled manufacturing processes. The modern manufacturing processes and stringent quality control result in improved pump performance, reliability and longer life. The high quality AISI 316 stainless steel pumps are competitively priced and designed to allow easy maintenance and CIP (clean in place). They are 3-A Standard and EHEDG approved (European Hygienic Equipment Design Group).
JEC Sanitary Twin Screw Pumps
  1. Why Choose a Twin Screw Pump?

The twin screw pumps offer a great feature that they can operate over a large speedrange. With this feature, these pumps can have a dual function in hygienic application pumping the product at low speed and the CIP fluid at high speed so No additional CIP pump is needed. Due to the design, the twin screw pump can deliver a pulsation free flow on low viscosity product (<1cP), volatile and gaseous fluids. Also as a result of the design these pumps are able to create a high vacuum causing the pump to be self-priming. The JEC twin screw pump is developed according the highest hygienic specification such as EHEDG and 3A and fulfils the utmost hygienic and efficiency requirements for the most delicate hygienic applications!

JEC Sanitary Twin Screw Pumps

Applications Twin Screw Pump

  • To pump structure sensitive products
  • Pumping fluids with solids
  • Multiple use, operate at low capacities with low RPM's and high RPM’s for CIP cleaning
  • For applications where high viscous products, as well as low viscous products need to be pumped under high pressure.
  • Applications where you need a pulsation free flow

JEC Sanitary Self Priming Centrifugal Pumps

JEC sanitary self-priming side-channel centrifugal pumps are well suited to pump fluids containing varying amounts of air or gas, which cannot be pumped by a normal centrifugal pump. One of their many applications is using them as return pumps in CIP (clean in place) cleaning systems. Innovative design features minimise noise levels well below the level normally characteristic of this type of pump.

JEC Sanitary Self Priming Centrifugal Pumps

Port Size: 40mm to 65mm Max.

Flow Rate: 800 l/m

Max. Discharge Pressure: 4 bar

Max. Fluid Temperature: 140°C

Construction Materials: Stainless Steel.

Applications: Suitable for dairies, food, soft drink, pharmaceutical, brewery and water treatment.

Resources
No items found.
JEC Sanitary Centrifugal Pumps

JEC sanitary centrifugal pumps perform at a high efficiency level which gives the benefit of low energy consumption. This is achieved by the spiral shaped casing and a double curved impeller, which reduces friction and turbulence and increases suction capacity (low net positive suction head). Despite the higher performance level, fluids are handled gently compared with normal centrifugal pumps, thereby safeguarding product integrity. The pumps operate at a low noise level which allows safer and more comfortable manufacturing conditions.

JCP series offer a number of features that maximize cleanability, and it is approved of EHEDG and 3-A authorization. Precision casted casing and compact seal system extend seal life, which minimizes down time of system.

External balanced Front Loading Seal extends seal life and easy to maintenance.

JEC Sanitary Centrifugal Pumps

Port Size: 40mm to 65mm

Max. Flow Rate: 1400 l/m

Max. Discharge Pressure: 10 bar

Max. Fluid Temperature: 140°C

Construction Materials: Stainless Steel.

Applications: Suitable for dairies, food, soft drink, pharmaceutical, brewery and water treatment.

Resources
No items found.

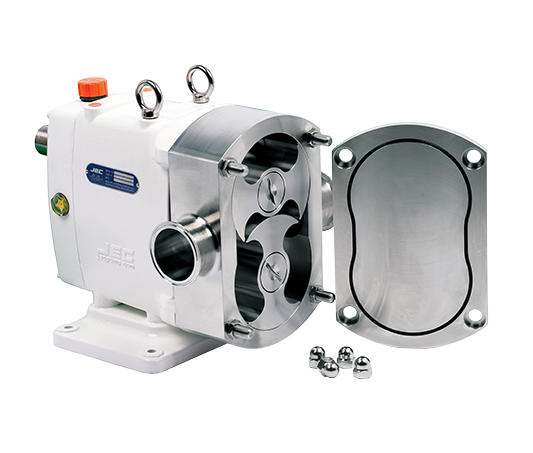

JEC Sanitary Rotary Lobe Pumps
JEC sanitary rotary lobe pumps treat fluids gently, ensuring low shear and minimal foaming to maintain product quality. These versatile pumps can handle both thin and viscous products and are self priming. They can be fitted with single, twin, tri or gear lobes to exactly configure them for specific applications, which results in high efficiencies. A thermal jacket can be fitted if pumped fluids need to be heated or cooled. A rotary lobe truck pump has been specially designed for loading and unloading tanker trucks carrying food grade or pharmaceutical products.
JEC Sanitary Rotary Lobe Pumps

Port Size: 25mm to 150mm

Max. Flow Rate: 1650 l/m

Max. Discharge Pressure: 20 bar

Max. Fluid Temperature: 200°C

Construction Materials: Stainless Steel.

Applications: Suitable for dairy, food, soft drink, pharmaceutical, cosmetic, confectionery, soap and detergent, sugar, brewery.

JEC Sanitary Shear Blending Systems
JEC sanitary shear blending systems can handle simple and demanding applications to blend, emulsify, disperse, dissolve and homogenize a wide variety of products. The unique impeller-vane and inducer design enables quick dissolution and hydration of any fluids requiring sensitive shearing. Matching the impeller-vane design with the fluid shear rate makes the blending systems very efficient and rapid in operation, resulting in quality output and reduced mixing times.
JEC Sanitary Shear Blending Systems
    The B Series blender offers: 90% recuduction in mixing time - Full CIP - up to 80m³/hr
JEC Sanitary WFI Centrifugal Pumps

JEC sanitary WFI centrifugal pumps are ideal for high purity, pyrogen-free fluid for pharmaceutical process and deionized water. They perform at the same high efficiency levels as the other JEC centrifugal pumps.

The JEC range offers great quality pumps at competitve prices and Pump & Machinery have the expertise to help with selection, repair and servicing.

In all sectors of the beverage, dairy, pharmaceutical and food processing industries, JEC JWP Series pumps have been proven successful by absolute reliability, low energy consumption, perfect CIP clean ability and low noise level. Special feature of the JEC pumps is high efficiency which gives low energy consumption. The basis for this is the double curved impeller and modular design. The design reduces friction and turbulance, and gives a better suction capacity (low NPSH) at the same time as the pumped product is handled very gently.

JEC Sanitary WFI Centrifugal Pumps
  • JEC Centrifugal Pumps JCP series are designed for heavy-duty, high efficiency applications
  • Less downtime and faster maintenance due to front-loading seal
  • Suitable for EHEDG and 3-A, 1935/2004, FDA and ATEX standards
  • Designed for heavy-duty, high efficiency applications
  • High efficiency and low power consumption
  • Totally cleanable and self-draining for CIP and SIP to meet EHEDG and 3-A standards
  • Low NPSH requirement and noise level
  • Faster maintenance, easier cleaning and less downtime due to unique front loading seal design
  • Easy to interchangeable from a single seal to double seal in minutes
  • One sized shaft seal & Optional base mount version
  • Maximum pressure : 145psi(10bar)
  • Maximum capacity : 440GPM(100 ㎥/hr)
  • Ideal for hygienic process in dairies, foods, soft drinks, pharmaceuticals, breweries and water treatments
  • Mirror finish-standard 0.6 ㎛Ra optional 0.4 ㎛Ra (16Ra, 192grit)
